| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE, RoHS, FCC |
| Model Number: | OFS-PE-DX-XX |
| Minimum Order Quantity: | 1 pcs |
| Price: | negotiable |
| Packaging Details: | 40 pcs per carton |
| Delivery Time: | 5-8 working days |
| Payment Terms: | T/T, Western Union, L/C, Paypal |
| Supply Ability: | 3000 pcs per week |
| Material: | Iron Housing | Power: | DC48V 1.25A |
|---|---|---|---|
| Connectot: | SC, RJ45, FC | Data Rate: | 10/100Mpbs |
| Dimension: | 90x70x26mm | Temp.: | 0~50℃(Operating); 20~70℃(Storage) |
| Warranty: | 1 Year | Carton Size: | 48*44*39CM For 40 Pcs |
| Highlight: | managed poe switch,ethernet switch poe |
||

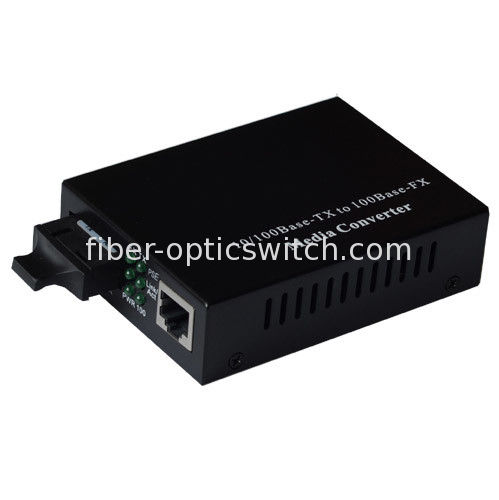

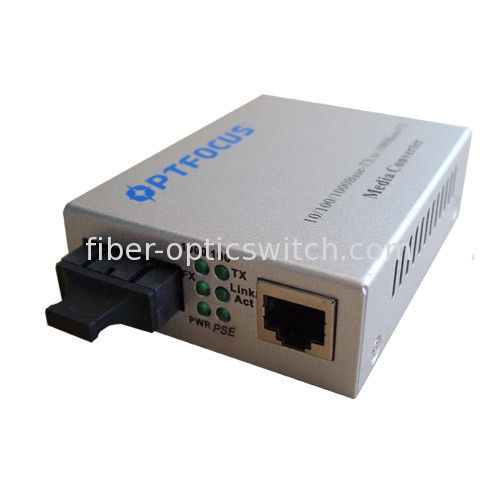

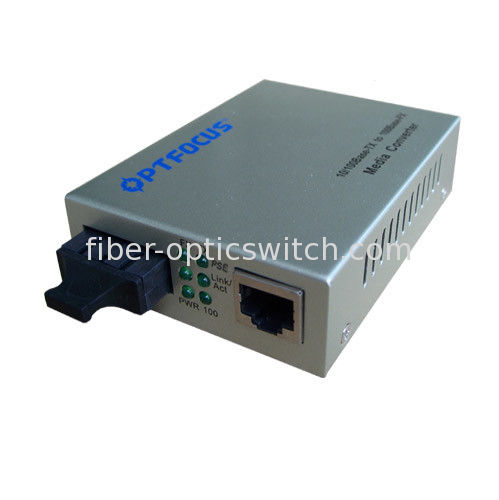

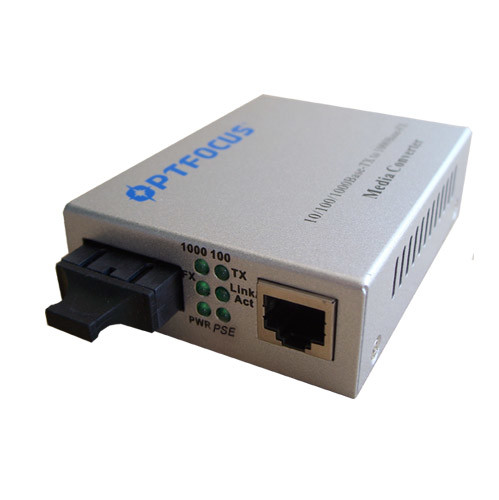

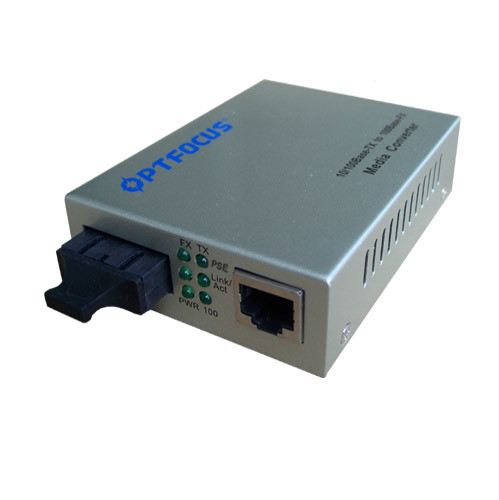

OFS-PE-DM-xx
More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well. The best data link and power sourcing solution for long reach network equipment.
This OFS-PE-DX-XX series Media Converter are 10/100Base T/TX to 100Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones, etc.
Feature:
◆With PoE supported to save power infrastructure cost
◆IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible
◆Connect to PoE switches mid-span hubs or other 802.3af Power Source Equipment(PSE).
◆Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.
◆Stand alone unit with mini design.
Specification:
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3x Flow Control | |
| IEEE802.3af Power over Ethernet | |
| PoE power | 15.4W per port (IEEE802.3af) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 or 4/5(+) and 7/8(-) | |
| Cable: UTP cat.5 or higher | |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m | |
| Distance | Multi mode & Dual Fiber 2KM |
| Single mode & Single Fiber:20/40/60/80/120KM | |
| Data rate | 10/100Mpbs |
| Connector | RJ45,SC,FC |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC48V 1.25A |
| Power Consumption | <3w |
| Temperature | 0~50℃(Operating); 20~70℃(Storage) |
| Humidity | 10~90% non-codensing |
| Dimension | 90x70x26mm |
Ordering information:
| OFS-PE-DM-2 | 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 multimode fiber port, 850 or 1310nm of optical wavelength, the max distance of fiber up to 2km.supported 15.4W PSE. |
| OFS-PE-DS-XX | 10/100M Ethernet Dual Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310 or 1550nm of optical wavelength, the max distance of fiber up to 20～120km.supported 15.4W PSE. |
| OFS-PE-WS01/02-XX | 10/100M Ethernet Single Fiber Switch with 1 UTP ports and 1 singlemode fiber port, 1310/1550nm of optical wavelength, the max distance of fiber up to 20～120km.supported 15.4W PSE. |
