| Place of Origin: | Mianland, China |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE, FCC, RoHS |
| Model Number: | OFS-PE-GSF1T2 |
| Minimum Order Quantity: | 10 pcs |
| Price: | USD 27-31 per pcs |
| Packaging Details: | 120x85x30mm |
| Delivery Time: | 5-8 working days |
| Payment Terms: | Western Union, T/T |
| Supply Ability: | 10000 pcs per month |
| Feature: | Support Full-Duplex And Auto-Negotiation Mode For Fiber Port | Fiber Port: | SC/FC/ST |
|---|---|---|---|
| Data Rate: | 10/100/1000Mpbs | Power Consumption: | <60w |
| Warranty: | 1 Year | Temperature: | 0~50℃（Operating）-20~70℃(Storage) |
| Dimensions: | 90 X 70x 26 Mm | ||
| Highlight: | managed poe switch,ethernet switch poe |
||

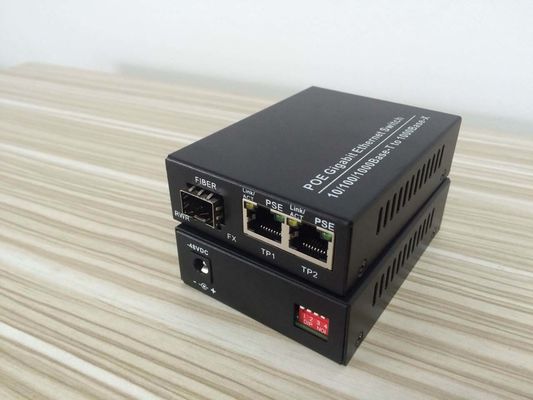

1 Gigabit FX + 2 *10 / 100 / 1000M TX Power Over Ethernet POE Fiber Optical Ethernet Switch
OFS-PE-GSF1T2
Introduction
More than a Fiber Media Converter and also can be a Power over Ethernet Injector as well.The best data link and power sourcing solution for long reach network equipment.
This OFS-PE-GSF1T2 series Media Converter are 10/100/1000Base T/TX to 1000Base FX Power over Ethernet(PoE) devices that serve as Power Sourcing Equipment(PSE).which allows the converter to provide power to IEEE802.3af PoE standard-compliant Powered Devices(PDs) using the twisted pair connection. Power transmitted along with data in one single cable(RJ45) allows you to expand your network where there are no power lines or outlets. Where you wish to devices such as Wifi Aps. IP Cameras or IP Phones.etc.
Specification:
| Standard | IEEE802.3i 10BASE-T |
| IEEE802.3u 100BASE-TX | |
| IEEE802.3z 1000BASE-TX | |
| IEEE802.3x Flow Control | |
| IEEE802.3af Power over Ethernet | |
| IEEE802.3at Power over Ethernet | |
| PoE power | 15.4W per port (IEEE802.3af).30W per port (IEEE802.3at) |
| Wiring: Data & power provided over pairs 1/2 and 3/6 | |
| Cable:UTP cat.5 or higher | |
| Fiber type | Multi mode(MM): 62.5/125m.50/125m |
| Single mode(SM): 9/125m | |
| Distance | Multi mode & Dual Fiber 550M |
| Single mode & Single Fiber:20/40/60/80/100/120KM | |
| Data rate | 10/100/1000Mpbs |
| Connector | RJ45,SC/ST/FC/LC |
| Wavelength | 1310nm 1490nm 1550nm |
| Diagnostic LED | Power Link/Activity |
| Power | DC48V－57V |
| Power Consumption | <60w |
|
Dimensions: 90 x 70x 26 mm
|
|
| Temperature | 0~50℃(Operating)-20~70℃(Storag) |
| Humidity | 10~90% non-codensing |
Feature:
◆With PoE supported to save power infrascture cost
◆IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible
◆Connect to PoE switches.mid-span hubs.or otcher 802.3af Power Source Equipment(PSE).
◆Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.
◆Stand alone unit with mini design.
Feature:
◆With PoE supported to save power infrascture cost
◆IEEE 802.3af/at Poe PSE(Power Source Equipment) Compatible
◆Connect to PoE switches.mid-span hubs.or otcher 802.3af Power Source Equipment(PSE).
◆Support Full-Duplex and Auto-Negotiation Mode for Fiber Port.
◆Stand alone unit with mini design.
