| Place of Origin: | CHINA |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE; RoHS |
| Model Number: | OFSS-8512-S5D |
| Minimum Order Quantity: | 5 pcs |
| Price: | negotiable |
| Packaging Details: | 10 pcs per plate |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T, Western Union, L/C, paypal |
| Supply Ability: | 5000 per week |
| Package: | SFP | Connector: | LC |
|---|---|---|---|
| Distance: | 550M | Wavelength: | 850nm |
| Data Rate: | 1.25Gbps | ||
| Highlight: | optical fiber transceiver,gigabit ethernet transceiver |
||

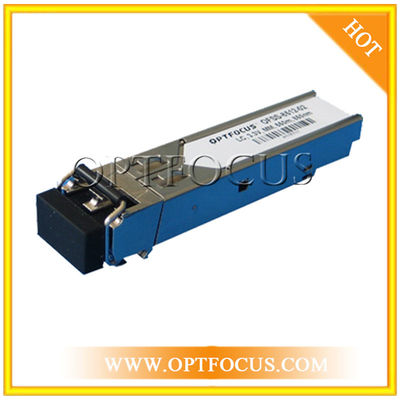

550M 850nm SFP Optical Transceiver Multi Mode Dual Fiber With DDM function
1. Feature:
SFP package with LC connector
850nm VCSEL Laser and PIN photo detector
Up to 550m transmission on 50/125 um MMF
+3.3V single power supply
LVPECL compatible data input/output interface
Low EMI and excellent ESD protection
laser safety standard IEC-60825 compliant
Compatible with RoHS
Digital Diagnostic SFF-8472 compliant
2. Application:
1.25 Gb/s 1000Base-SX Ethernet
Dual Rate 1.063/2.125 Gb/s Fibre Channel
Wireless – CPRI, OBSAI, LTE
3. Absolute Maximum Ratings:
| Parameter | Symbol | Minimum | Maximum | Units |
| Storage Temperature | Tst | -40 | +85 | °C |
| Supply Voltage | Vcc | 0 | +3.6 | V |
| Operating Relative Humidity | RH | 5 | 95 | % |
4. Outline drawing (mm):
