| Place of Origin: | Guangdong, China(Mainland) |
|---|---|
| Brand Name: | OPTFOCUS |
| Certification: | CE,FCC |
| Model Number: | OFS-GS-100 |
| Minimum Order Quantity: | 2 pieces |
| Price: | negotiated |
| Packaging Details: | 48*42.5*38 CM 40pcs per carton |
| Delivery Time: | 3-5 Working Days after Payment Received |
| Payment Terms: | T/T, L/C, Western Union, Paypal |
| Supply Ability: | 10000 Pieces per Month |
| Max Distance: | 100 KM | Interface Type: | RJ 45 |
|---|---|---|---|
| Communication Working Format: | Full-duplex Or Half-duplex (Auto Negotiation) | Power: | External |
| Color: | Black Or Silver | Interface Speed Rate: | 10/100/1000Mbit/s Auto-adaptation, The Default Is 100MBPS |
| Highlight: | optical media converter,fiber optic converters |
||

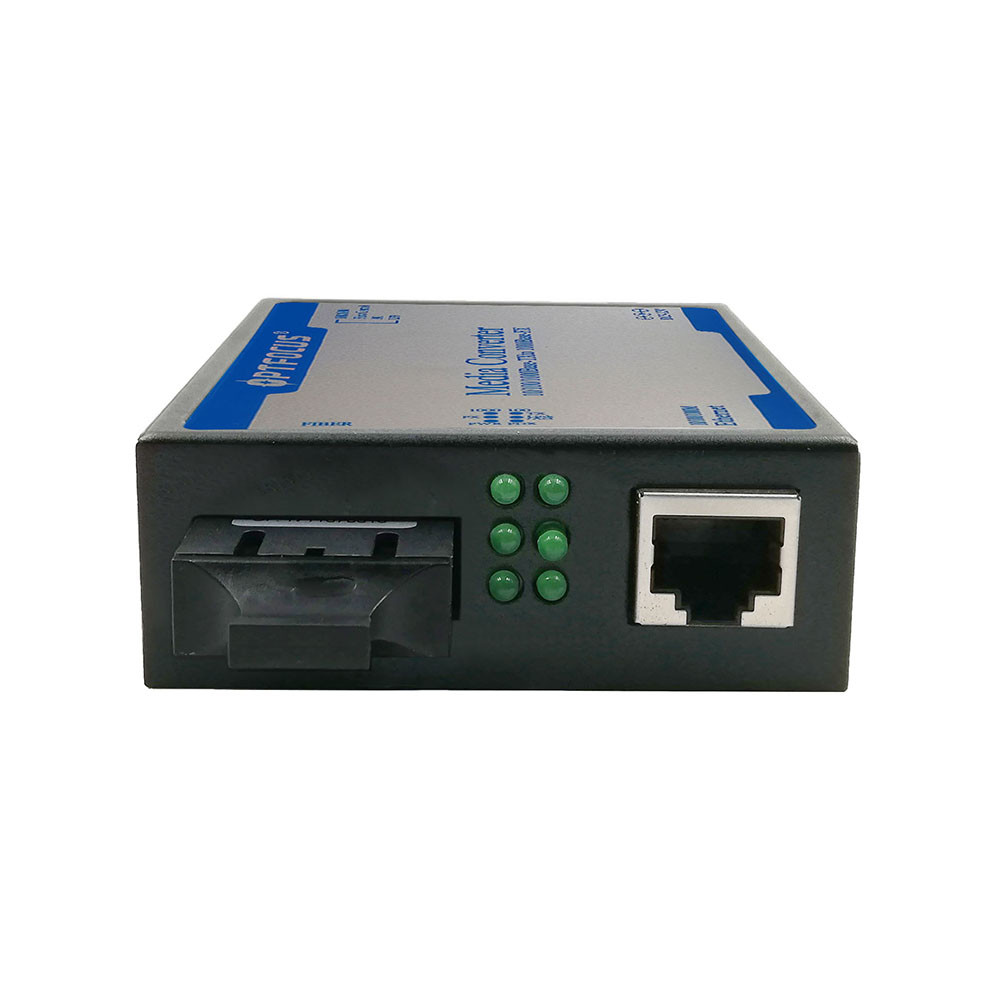

Flow Control Ethernet Fiber Optic Media Converter , Single Mode 100Km
10/100/1000M Gigabyte Optical Fiber Media Converter
OFS Series Gigabit Fiber Media Converter can convert Optical－Electric Ethernet signals between 10/100/1000MUTP interface (TX) and 1000M optical fiber interface (FX). The traditional 10/100/1000M gigabit Ethernet can be extended to the distance of 100km through optical fiber link.
The performance and quality of the products are excellent because of adopting latest Gigabit IC from USA and Taiwan.
6 Group LED indicated lights could fully monitor the working conditions of converters. It is easy for users to observe and diagnose the failure of converters.OFS Series Gigabit Converters could be used alone; but Converter Card should be inserted to 16 slots RACK supplied by OFS Crop. which is suitable for the use of Network Centre.
Main features
◆Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex.
◆Supporting the max 1536 byte Ethernet packet
◆Supporting flow control
◆Adopting internal power supply
◆The UTP port supports the connection of MDI/MDI-X auto crossover.
◆Multimode Fiber: the max distance up to 220m/ 550m
Singlemode Fiber: the max distance up to 100km
Fiber Information
|
Model |
Connector |
Fiber type |
Max distance |
Wavelength |
TX power |
Sensitivity |
Link Budget |
|
OFS-GM |
SC |
Multimode |
220/ 550m |
850nm |
-11～-3dBm |
-18dBm |
7dBm |
|
OFS -GS-20 |
SC |
Singlemode |
20km |
1310nm |
-10～-3dBm |
-21dBm |
11dBm |
|
OFS -GS-40 |
SC |
Singlemode |
40km |
1310nm |
-4～0dBm |
-25dBm |
21dBm |
|
OFS -GS-60 |
SC |
Singlemode |
60km |
1310nm |
0～3dBm |
-26dBm |
26dBm |
|
OFS -GS-80 |
SC |
Singlemode |
80km |
1550nm |
-2～2dBm |
-26dBm |
24dBm |
|
OFS -GS-100 |
SC |
Singlemode |
100km |
1550nm |
1～3dBm |
-27dBm |
28dBm |
Technical Specifications
| Operating standards | IEEE802.3z/AB, 1000Base-T and 1000Base-SX/LX |
| MAC address table | 4K |
| Data Buffer | 256K |
| Connector | UTP: RJ-45,10/100/1000Mbps; Fiber: SC,1000Mbps |
| Cable |
UTP cable: Cat 5e or Cat 6 (the max distance up to 100m) Fiber : multimode : 50/125, 62.5/125μm (the max distance up to 550/224m) singlemode : 8.3/125, 8.7/125, 9/125μm (the max distance up to 100km) |
| Power |
AC 220V(170-260V) 50Hz; DC 5V,2A |
| Humidity |
5% ～ 90% |
| Storage temperature | -20 ～ +70℃ |
| Ambient temperature | 0 ～ +50℃ |
| Flow control |
Full Duplex: IEEE802.3x Half Duplex: back pressure. |
| Dimensions | 40 (high) x 110 (width) x 140 (length) mm |
|
Model |
Product description |
|
OFS -GM |
10/100/1000M Ethernet Multimode Converter: optical wavelength 850nm, optical fiber max distance up to 224m for 62.5μm , 550m for 50μm |
|
OFS –GS-xx |
10/100/1000M Ethernet Singlemode Fiber Converter: optical wavelength 1310 or 1550nm, optical fiber max distance up to 20, 40, 60, 80,100, or 120km, xx for the amount of distance. |
